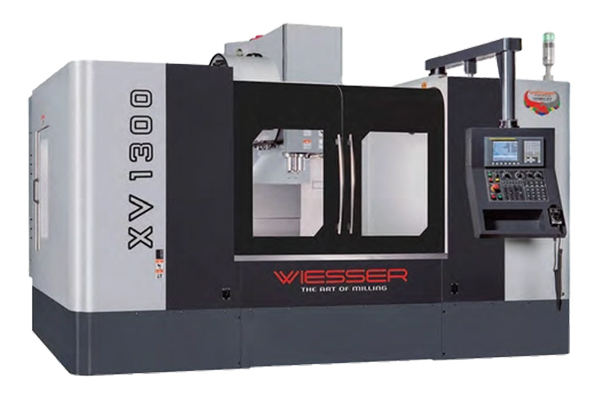

Wiesser XV1300

Capacity Information

Machine Table dimensions: 1,300 x 700 (mm)

T Channel dimensions: 18 x 5 x 150 (mm)

Table loading capacity: 1,300 (kg)

X Axis movement amount: 1,300 (mm)

Y Axis movement amount: 750 (mm)

Z Axis movement amount: 700 (mm)

Distance between spindle face and table: 150 ~ 850 (mm)

Distance from spindle center to column: 800 (mm)

Spindle motor power: 15 (kW)

Spindle taper: BBT-40 / Big Plus

Maximum spindle speed: 12,000 (rpm)

Spindle - Motor transmission type: Direct Motor

Automatic magazine type: Arm Type

Number of magazine stations: 24 (pcs)

Maximum tool diameter: Side pots full: 90 (mm) / Side pots empty: 180 (mm)

Maximum tool length: 300 (mm)

Maximum tool weight: 8 kg (for 24-piece magazine)

Tool change time: (T-T) 2.2 (sec) / Tool to Tool

Tool change time: (C-C) 4.5 (sec) / Chip to Chip

X Axis guideway type and width: Linear Roller Guide (45mm)

Y Axis guideway type and width: Linear Roller Guide (45mm)

Z Axis guideway type and width: Linear Roller Guide (45mm)

Screw shaft diameter X*Y*Z / Class: 45*45*45 (mm) / C3 Class

Axis motor powers X*Y*Z: 4.5*4.5*7 (kW)

Rapid feed X*Y*Z: 24*24*24 (m/min)

Cutting feed X*Y*Z: 15 (m/min)

Positioning accuracy: ±0.005 (mm) / 300 (mm)

Repeat accuracy: ±0.003 (mm)

Machine dimensions W*D*H: 4,000 * 3,740 * 2,900 (mm)

Machine weight: 9,000 (kg)
