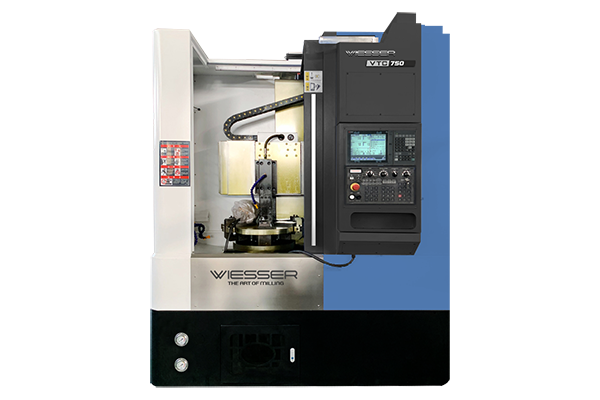

Wiesser VTC750 / 21 inch CNC Vertical Lathe

Wiesser VTC750 / 21 inch

Standard Machine Features

Fanuc 0i-TF Plus Control Unit

Strong and Wide Body Structure

Faster and more rigid movements with Linear Roller Guides

21 inch 3 Jaw Hydraulic Chuck

8-station Horizontal Servo Turret or 4-station Servo Vertical Turret

Pallet Type Chip Conveyor

Central Lubrication System

Foot Pedal for Chuck Clamp-Unclamp

Fully enclosed case

3-color warning lamp

Interior lighting lamp

Machine mounting foot set

Tool Bag and Kits

CE Equipment

Transformer

User and Maintenance Manuals

Capacity Information

Max. swing over bed: Ø750 (mm)

Max. turning diameter: Ø650 (mm)

Spindle nose: A2-11

Spindle bearing diameter: Ø180 (mm)

Max. spindle speed: 50 ~ 1.000 (rpm)

Spindle motor power: 22/30 (kW)

Spindle motor torque: 286 / 715 (Nm)

Chuck diameter: 21 (inch)

Turret type: Servo Turret

Number of turret stations: 8 station Horizontal Turret or 4 station Servo Turret

Square tool dimensions: 32x32 (mm)

Boring bar holder diameter: Ø50 (mm)

X axis travel: -50 ~ 375 (mm)

Z axis travel: 700 (mm)

Distance Between Turret and Chuck: 0~700 (mm)

Guide Type / Dimensions (X*Z): Linear Roller Guide / 55*55 (mm)

Ballscrew Diameter (X*Z): Ø50*40 (mm)

X*Z axis rapid feedrate: 15*12 (m/min.)

Cutting feedrate: 5 (m/min.)

X axis motor power / Torque: 2,4 (kW) / 15 (Nm)

Z axis motor power / Torque: 2,8 (kW) / 18 (Nm)

Machine dimensions (WxDxH): 2.300x2.000x3.000 (mm)

Approximate Machine weight: 7.200 (kg)
