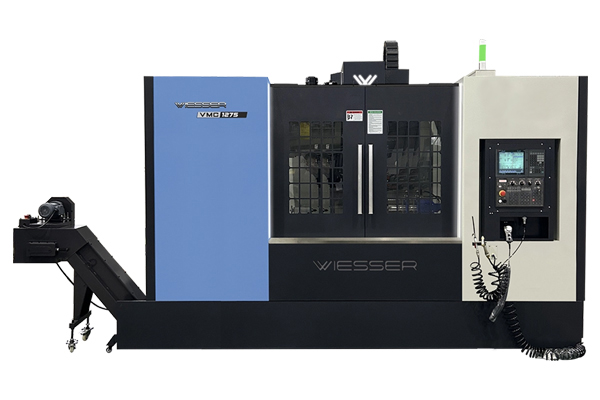

Wiesser VMC1275

Capacity Information

Table dimensions : 1.300 x 700 (mm)

T Channel dimensions : 18 x 7 x 110 (mm)

Table loading capacity : 1.100 (kg)

X Axis Travel : 1.200 (mm)

Y Axis Travel : 750 (mm)

Z Axis Travel : 600 (mm)

Distance between spindle face and table : 120 ~ 720 (mm)

Distance between spindle and column : 835 (mm)

Spindle motor power : 15 (kW)

Spindle taper : BBT-40

Max. spindle speed : 12.000 (rpm)

Spindle - Motor transmission type : Direct Motor

Automatic magazine type : Arm Type

Number of magazine stations : 24 (pcs)

Max. tool diameter Standard / Side pots empty: 78 / 150 (mm)

Max. tool length : 300 (mm)

Max. tool weight : 8 (kg)

Tool change time (T-T): 1,8 (sec.)

Axis Motor Power X*Y*Z : 3*3*3,5 (kW)

X Axis guideway type / Block pcs. : Linear Roller Guide (45mm) / 6 (pcs)

Y Axis guideway type / Block pcs. : Linear Roller Guide (45mm) / 4 (pcs)

Z Axis guideway type / Block pcs. : Linear Roller Guide (45mm) / 6 (pcs)

Ball screw diameter X*Y*Z / Pitch : 40*40*40 (mm) / 12 (mm)

Rapid feed X*Y*Z : 30*30*24 (m/min)

Cutting feed X*Y*Z : 10 (m/min)

Positioning accuracy : ±0.008 (mm) / 300 (mm)

Repetition accuracy : ±0.005 (mm)

Machine dimensions (WxDxH): 4.500x3.380x2.900 (mm)

Approximate Machine Weight: 8.000 (kg) (Varies according to options)
