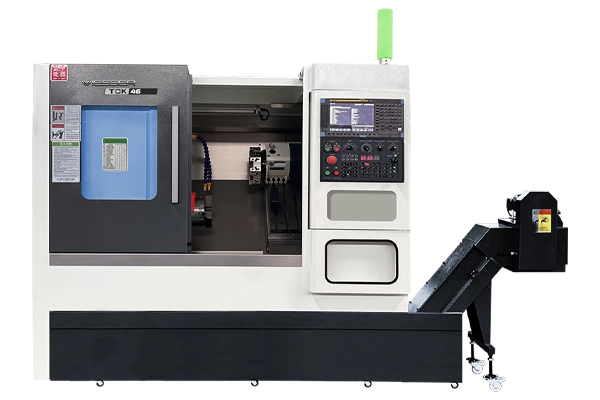

Standard Machine Features
Strong and Wide Body Structure
46 mm Spindle Bar Capacity
Faster and more rigid movements with Linear Roller Guides
6 inch Hydraulic Chuck
Slant bed cast body structure
Pallet Type Chip Conveyor
Central Lubrication System
Foot Pedal for Chuck Clamp-Unclamp
Fully enclosed case
3-color warning lamp
Interior lighting lamp
Machine mounting foot set
Tool Bag and Kits
CE Equipment
Transformer
User and Maintenance Manuals
Capacity Information
Chuck diameter: 6 (inch)
Max. swing over bed: Ø460 (mm)
Max. turning diameter: Ø150 (mm)
Spindle nose: A2-5
Spindle bore: Ø56 (mm)
Bar capacity: Ø46 (mm)
Max. spindle speed: 4.500 (rpm)
Spindle motor power: 7.5/11 (kW)
Guide Type / Dimensions (X*Z): THK (Brand) Linear Roller Guide / 30*30 (mm)
Bed tilt angle : 45°
X*Z axis rapid traverse: 24*24 (m/min.)
X axis travel: 450 (mm)
Z axis travel: 340 (mm)
Positioning accuracy: ±0.008 (mm)
Repeatability accuracy: ±0.004 (mm)
Turret: No turret. (Option: Electric or Servo Turret can be selected)
Square tool dimensions: 20x20 (mm)
Tailstock: No tailstock
Machine dimensions (WxDxH): 2.500x1.700x2.200 (mm)
Approximate Machine weight: 2.600 (kg)
