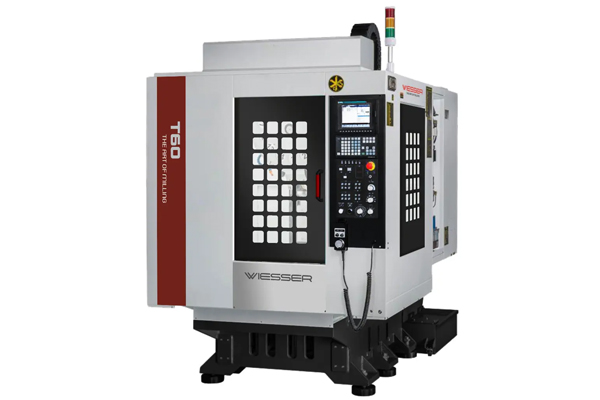

Wiesser T60

CNC Tapping Center

Standard Machine Features

Turret type ATC with 21 stations

High Speed rapid movements

High Speed Spindle

Rigid Tapping

In-machine screw type chip conveyor

Double Row Wide Roller (Bobbin) Linear Guides

Spindle Cooling System

Electrical cabinet ventilation system

Fully enclosed case

Portable handwheel

Tool cooling system with compressed air

Tool cooling system with cooling oil

Oil gun

Air gun

Central lubrication unit

Colored warning lamp indicating machine operating status

Led Interior Lighting lamp

Machine mounting feet set

Tool Bag and Kits

CE Equipment

Transformer

Use and Maintenance Guides

Wiesser T60

Capacity Information

Machine Table dimensions : 700 x 400 (mm)

Table loading capacity : 300 (kg)

X Axis movement amount : 600 (mm)

Y Axis movement amount : 400 (mm)

Z Axis movement amount : 320 (mm)

Distance between spindle face and table : 150 ~ 470 (mm)

Distance from spindle center to Column : 420 (mm)

Spindle motor power : 5.5 (kW)

Spindle taper : BBT-30

Maximum spindle speed : 20.000 (rpm)

Spindle - Motor transmission type : Direct Motor

Automatic magazine type : Turret Type

Number of magazine stations : 21 (piece)

Maximum tool diameter : 60 / 80 (mm)

Maximum tool length : 250 (mm)

Axis Motor Powers X*Y*Z : 1.5 * 1.5 * 3 (kW)

X Axis slide type : 2 (pcs) * Linear Bobbin Slide (30mm)

Y Axis slide type : 2 (pcs) * Linear Bobbin Slide (30mm)

Z Axis slide type : 2 (pcs) * Linear Bobbin Slide (35mm)

Rapid feed X*Y*Z : 48 *48*48 (m/min)

Cutting feed X*Y*Z : 15 (m/min)

Machine External Case Dimensions W*D*H: 1.900 * 2.600 * 2.600 (mm)

Approximate machine weight : 3,200 (kg)
