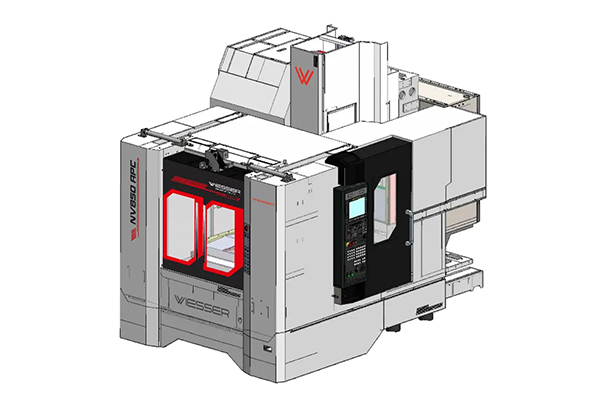

Wiesser NV850 APC

Double Pallet CNC Vertical Machining Center

Standard Machine Features

High Speed Double Pallet CNC Vertical Machining Center

Automatic Pallet Changing System

36 m/min. Idle Movement Speeds in All Axes

12 m/min. in All Axes Cutting Progress

Direct Motor Spindles

24 Station Arm Type ATC

2 Pieces Big Plus BBT-40 Royal Brand Spindle

Strong and wide body structure

Rigidity that does not deteriorate for a long time with rasping at 17 different points in the Cast Body

Super Precision C1 Class Screw Spindles in all axes

Extra supported Durable Outer Case

Cooling water system and Boron oil gun

Pressurized bottom chip washing system (Wash Down)

Rigit Tapping (Rigid Tapping)

Spiral type chip conveyor, Fully closed case

Warning lamp showing machine operating status

Interior Lighting lamp, Machine mounting foot set

Transformer, Full CE and Tool Bag, Programming and Maintenance Book Set

Wiesser NV850 APC

Capacity Information

Machine table dimensions: 1200 x 410 (mm)

T Channels: 18 (mm) x 110 (mm) x 5

Table loading capacity: 500 (kg)

Pallet Change Type: 180 degree rotation

Pallet Change Time: 12 (sec.)

X Axis Movement Amount: 610 (mm)

Y Axis Movement Amount: 435 (mm)

Z Axis Movement Amount: 560 (mm)

Axis Guides X/Y/Z: Linear Roller Guide 35x45x35 (mm)

Axis Ball Screw Diameters X/Y/Z: 32/40/40 (mm)

Spindle to table distance: 200-650 (mm)

Spindle taper: Big Plus BBT-40

Max. Spindle motor power / Torque: 15 (kW) / 95.5 (N-m) S3-%15

Max. Spindle speed: 12,000 (rpm) / Direct Motor

Number of magazine stations: 2 x 24 pcs (Arm Type ATC)

Max. Tool diameter: 75 (mm)

Max. Tool length: 150 (mm)

Max. Tool Weight: 6 (kg)

Tool change time (T/T): 2.2 (sec)

Tool change time (C/C): 3.5 (sec)

Rapid feed X*Y*Z: 36*36*36 (m/min)

Cutting feed X*Y*Z: 20 (m/min)

Machine Outer Case Dimensions W*D*H: 2,250 * 3,640 * 3,020 (mm)

Floor Coverage Dimensions W*D: 2,600 *3,860 (mm)

Approximate Machine Weight: 4,200 (kg)
