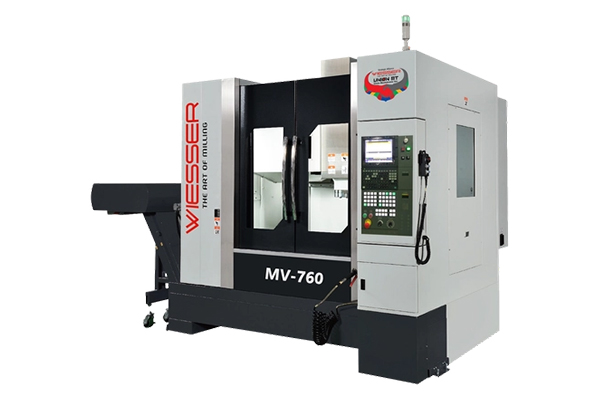

Wiesser MV760P

Capacity Information

Machine Table dimensions: 1,000 x 600 (mm)

T Channel dimensions: 18 x 5 x 100 (mm)

Table loading capacity: 700 (kg)

X Axis movement amount: 760 (mm)

Y Axis movement amount: 610 (mm)

Z Axis movement amount: 610 (mm)

Distance between spindle face and table: 100 ~ 710 (mm)

Distance from spindle center to column: 628 (mm)

Spindle motor power: 15 (kW)

Spindle taper: BBT-40 / Big Plus

Maximum spindle speed: 12,000 (rpm)

Spindle - Motor transmission type: Direct Motor (Direct Drive)

Automatic magazine type : Arm Type

Number of magazine stations : 24 (pcs)

Maximum tool diameter : Side pots full: 90 (mm) / Side pots empty: 180 (mm)

Maximum tool length : 300 (mm)

Maximum tool weight : 8 kg

Tool change time (T-T) : 2.2 (sec) / Tool to Tool

Tool change time (C-C) : 4.5 (sec) / Chip to Chip

X Axis guideway type and width : Linear Roller Guide (35mm)

Y Axis guideway type and width : Linear Roller Guide (45mm)

Z Axis guideway type and width : Linear Roller Guide (45mm)

Screw shaft diameter X*Y*Z / Quality : 45*45*45 (mm) / C2 Class

Axis motor power X*Y*Z : 3*3*4.5 (kW)

Rapid feed X*Y*Z : 36*36*36 (m/min)

Cutting feed X*Y*Z : 20 (m/min)

Positioning accuracy : ±0.005 (mm) / 300 (mm)

Repeat accuracy : ±0.003 (mm)

Machine dimensions W*D*H : 2,150 * 2,763 * 2,843 (mm)

Machine weight : 6,300 (kg)
