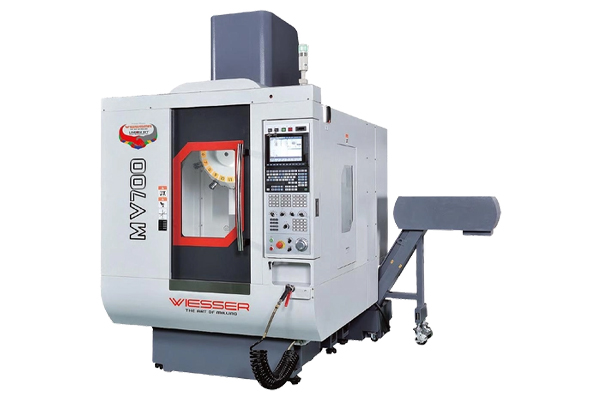

Wiesser MV700P

CNC Tapping Center

Standard Machine Features

Super High Speed CNC Tapping Center

60 m/min Super Rapid Movements;

40 m/min. Perfect Cutting Feed

The best in speed and precision with 1.5 G acceleration

Direct Motor Spindle

20 Station Turret Type High Speed ATC with 0.8 sec. tool change speed

Big Plus BBT-30 Royal Brand Spindle

Strong and wide body structure

Long-term rigidity with rasping at 17 different points in Cast Body

Perfect rigidity and precision with Roller (Bobbin) RA30 Linear Guides

Super Precision C1 class 32mm diameter Ball Screw Shafts in all axes

Extra supported Durable Outer Case

Cooling water system and Boron oil gun

Pressurized bottom chip washing system (Wash Down)

Japanese Brand Axis Drivers and Axis Motors (Direct Motor)

Rigit Tapping (Rigid Tapping)

Spiral type chip conveyor, Fully closed case

Warning lamp showing machine operating status

Interior Lighting lamp, Machine mounting foot set

Transformer, Full CE and Tool Bag, Programming and Maintenance Book Set

Wiesser MV700P

Capacity Information

Machine table dimensions : 850 x 410 (mm)

T Channels : 14 (mm) x 125 (mm) x 3

Table loading capacity : 300 (kg)

X Axis Movement : 700 (mm)

Y Axis Movement : 400 (mm)

Z Axis Movement : 330 (mm)

Spindle to table distance : 150-480 (mm)

Spindle taper : Big Plus BBT-30

Max. Spindle motor power / Torque : 15 (kW) / 84.3 (Nm)

Max. Spindle speed (Direct Motor) : 15,000 (rpm)

Number of magazine stations : 20 pieces (Turret Type ATC)

Max. tool diameter Pot Full / Pot Empty : 80/150 (mm)

Max. Tool length : 250 (mm)

Max. Tool Weight : 3 (kg)

Tool change time (T/T) : 0.8 (sec)

Tool change time (C/C) : 1.6 (sec)

Axis Thrust Forces (X*Y*Z) : 4,712 * 4,712 * 4,712 (N)

Slide type X*Y*Z : Linear Roller (Spool) Slide

Axis slide thickness X*Y*Z : 30*30*30 (mm)

Ball Screw Diameter X*Y*Z (Class C1) : 32*32*32 (mm)

Rapid feed X*Y*Z : 60*60*60 (m/min)

Cutting feed X*Y*Z : 40 (m/min)

Coolant Tank Capacity : 200 Liters

Machine External Dimensions W*D*H : 2.100 * 2.891 * 2.500 (mm)

Machine weight : 3.400 (kg)
