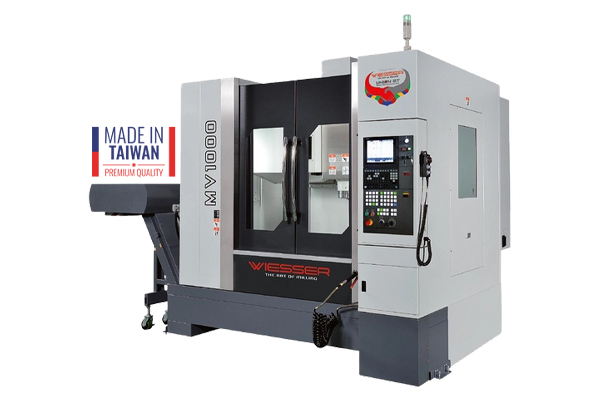

Wiesser MV1000P

CNC Vertical Machining Center

Standard Machine Features

Big Plus BBT-40 Direct Motor Spindle

Japanese design strong, wide and rigid body structure

Rigidity that does not deteriorate for a long time with scraping at 17 different points in the Cast Body

Grease-lubricated Wide, Double-Row Roller Linear Guide Ways

Grease lubricated C2 class 45mm diameter Ball Screws on all axes

High Quality and Extra-supported, durable Outer casing

Better surface quality with High Speed and High precision features

Rigit Tapping

Screw type chip conveyor

24 Station arm type ATC

Spindle Cooling System

Electrical cabinet ventilation system

Fully enclosed case

Portable handwheel

Tool cooling system with compressed air

Tool cooling system with coolant oil

Oil gun

Air gun

Colored warning lamp indicating machine operating status

Led Interior Lighting lamp

Machine mounting feet set

Tool Bag and Kits

CE Equipment

Transformer

Use and Maintenance Guides

Wiesser MV1000P

Capacity Information

Machine Table dimensions: 1.200 x 600 (mm)

Table loading capacity: 900 (kg)

X*Y*Z Axis movement amount: 1.020 * 610 * 610 (mm)

Distance between spindle face and table: 100 ~ 710 (mm)

Distance from Spindle center to Column: 628 (mm)

Spindle motor power: 15 (kW)

Spindle taper: BBT-40 / Big Plus

Maximum spindle speed: 12,000 (rpm)

Spindle - Motor transmission type: Direct Motor (Direct Drive)

Automatic magazine type * Number of stations: Arm Type * 24 (pcs)

Max. tool diameter: Side pots full: 90(mm) / Side pots empty: 180(mm)

Max. tool length * Weight: 300 (mm) * 8 kg (for 24 pcs. Magazine)

X axis guide way type and width: Linear Roller Way (35mm)

Y and Z axis guide way type and width: Linear Roller Way (45mm)

Ball screw diameter X*Y*Z / Class: 45*45*45 (mm) / Class C2

Axis motor powers X*Y*Z: 3*3*4.5 (kW)

Rapid feed rate X*Y*Z: 36*36*36 (m/min)

Cutting feed rate X*Y*Z: 25 (m/min)

Positioning accuracy: ±0.005 (mm) / 300 (mm)

Repeat accuracy: ±0.003 (mm)

Machine dimensions W*D*H: 2.528 * 2.763 * 2.843 (mm)

Approximate machine weight: 7.300 (kg) (May vary depending on options)
