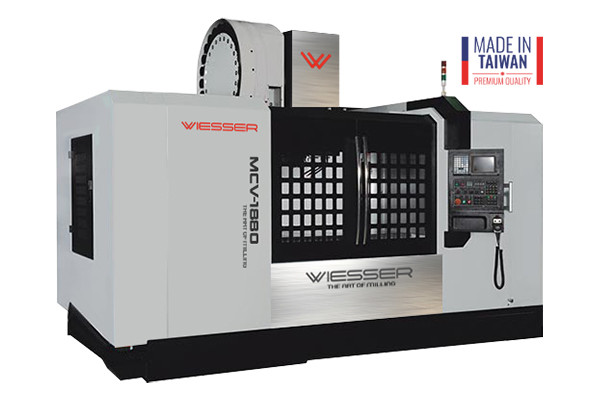

Wiesser MCV-1880

Capacity Information

Table dimensions : 1.900 x 800 (mm)

T Channel dimensions : 18 x 5 x 150 (mm)

Table loading capacity : 2.300 (kg)

X Axis Travel : 1.800 (mm)

Y Axis Travel : 800 (mm)

Z Axis Travel : 750 (mm)

Distance between spindle face and table : 150 ~ 900 (mm)

Distance between spindle and column : 855 (mm)

Spindle motor power : 15/18,5 (kW)

Spindle taper : BBT-40

Max. spindle speed : 12.000 (rpm)

Spindle - Motor transmission type : Direct Motor

Automatic magazine type : Arm Type

Number of magazine stations : 24 (pcs)

Max. tool diameter : 80 (mm)

Max. tool length : 300 (mm)

Max. tool weight : 8 (kg)

Tool change time (T-T): 2 (sec.)

Axis Motor Power X*Y*Z : 4,5*4,5*4,5 (kW)

X Axis guideway type : 2 (pcs) * Linear Roller Guide (55mm)

Y Axis guideway type : 4 (pcs) * Linear Roller Guide (55mm)

Z Axis guideway type : 2 (pcs) * Box way

Ball screw diameter X*Y*Z : 50*50*50 (mm)

Rapid feed X*Y*Z : 24*24*20 (m/min)

Cutting feed X*Y*Z : 10 (m/min)

Positioning accuracy : ±0.008 (mm) / 300 (mm)

Repetition accuracy : ±0.005 (mm)

Machine weight: 13.000 (kg)
