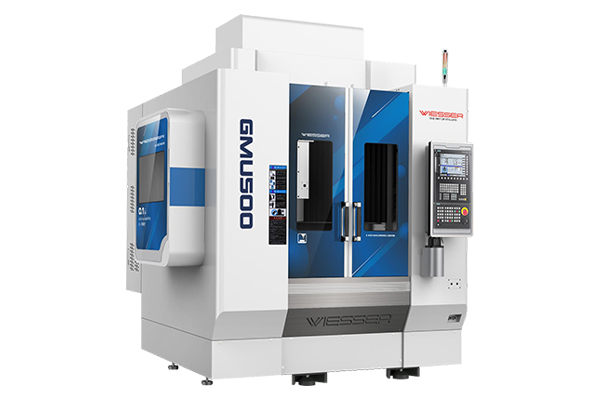

Wiesser GMU500

5 Axis CNC Machining Center

Standard Machine Features

U Type casting body technology with excellent damping feature

High Speed and High precision features for better surface quality

Strong and wide body structure with long-term rigidity

Rigid Tapping

Pallet type chip conveyor

20 Station Tool magazine

Double Row Wide Roller Linear Guides

Spindle Cooling System

Electrical cabinet ventilation system

Fully closed case

Portable handwheel

Pressure air tool cooling system

Water tool cooling system

Water gun

Air gun

Central lubrication unit

3-color warning lamp

Interior cabin lighting lamp

Machine mounting foot set

Tool Bag and Kits

CE Equipment

Transformer

Use and Maintenance Manuals

Wiesser GMU500

Capacity Information

Machine Table dimensions : Ø500 (mm)

Table loading capacity : 500 (kg)

X/Y/Z Axis travel : 550 / 550 / 450 (mm)

Distance between spindle nose and table : 100 ~ 550 (mm)

Max. Workpiece Diameter : 600 (mm)

A axis rotation : ±110°

C axis rotation : 360°

Max. working height : 400 (mm)

X/Y/Z axis guide : 35/35/35 (mm)

A / C axis rotation speed : 50 / 100 (rpm)

A axis motor power - Tightening torque : 5.7 / 9.5 (kW) - ≥4,200 (Nm)

C axis motor power - Tightening torque : 3.5 / 5.5 (kW) - ≥1,400 (Nm

A axis shaft Max. torque : 2,176 / 3628 (Nm)

C axis shaft Max. torque : 630 / 1,050 (Nm)

Spindle motor power : 11/15 (kW)

Spindle taper : BBT-40

Max. spindle speed : 12,000 (rpm) / Direct Motor

Number of magazine stations : 20 (pcs)

Maximum tool diameter : 60 / 100 (mm)

Max. tool length : 250 (mm)

Max. tool weight : 8 (kg)

Tool change time : 3 (sec)

Axis Motor powers X*Y*Z : 4.5 * 4.5 * 4.5 (kW)

Rapid feed X*Y*Z : 32*32*32 (m/min)

Cutting feed X*Y*Z : 12 (m/min)

Machine Dimensions W*D*H: 3,560 * 3,380 * 3,000 (mm)

Approximate Machine weight: 9,000 (kg)
