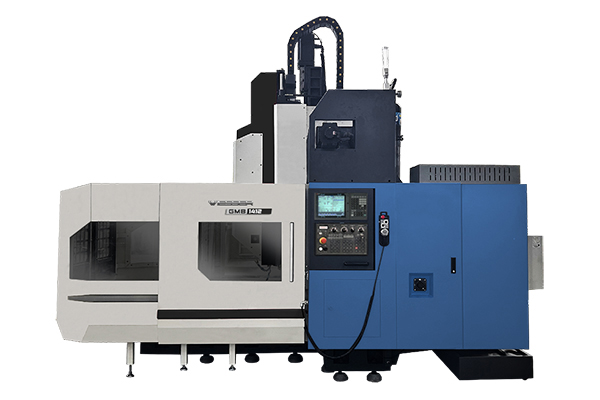

Capacity Information
Table dimensions : 1.400 x 1.100 (mm)
T Channel dimensions : 22 x 7 x 140 (mm)
Table loading capacity : 1.500 (kg)
X Axis Travel : 1.400 (mm)
Y Axis Travel : 1.200 (mm)
Z Axis Travel : 600 (mm)
Distance between spindle face and table : 150 ~ 750 (mm)
Distance between two columns : 1.200 (mm)
Spindle motor power : 15 (kW)
Spindle taper : BBT-40
Max. spindle speed : 12.000 (rpm)
Spindle - Motor transmission type : Direct Motor
Automatic magazine type : Arm Type
Number of magazine stations : 24 (pcs)
Max. tool diameter Standard / Side pots empty: 80 / 150 (mm)
Max. tool length : 300 (mm)
Max. tool weight : 8 (kg)
Ball screw diameter X*Y*Z : 50*40*40 (mm)
Ball screw pitch X*Y*Z : 12*12*12 (mm)
X Axis guideway type : Linear Roller Guide (45mm)
Y Axis guideway type : Linear Roller Guide (45mm)
Z Axis guideway type : Linear Roller Guide (45mm)
Rapid feed X*Y*Z : 15*15*18 (m/min)
Cutting feed X*Y*Z : 10 (m/min)
Machine dimensions (WxDxH): 4.000 * 2.700 * 3.300 (mm)
Approximate Machine Weight: 12.500 (kg) (Varies according to options)
