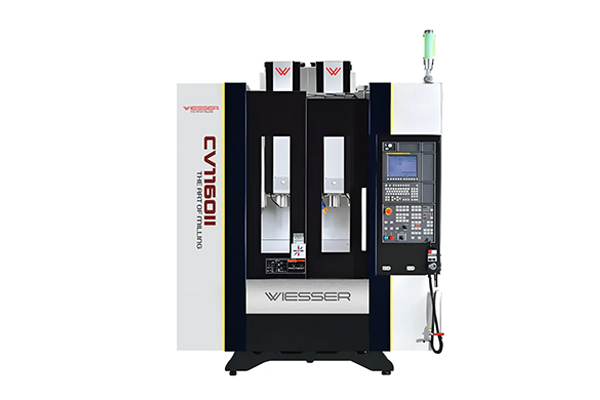

Wiesser CV1160II Double Spindle - Double Z Axis CNC Vertical Machining Center

Wiesser CV1160II

Standard Machine Features

High Speed Double Spindle CNC Vertical Machining Center

2 Independent Z axes

36 m/min. Idle Movement Speeds in All Axes

12 m/min. Cutting Feed in All Axes

Direct Motor Spindles

2 24 Station Arm Type ATC

2 BT-40 Spindles

Strong and wide body structure

Fully Closed Case

Air and Coolant Gun

Tool Cooling System with Coolant

Spindle Cooling Unit

Rigit Tapping

Spiral type chip conveyor

Warning lamp showing machine operating status

Interior Lighting lamp, Machine mounting foot set

Transformer, Full CE and Tool Bag, Programming and Maintenance Documents

Capacity Information

Machine table dimensions: 1200 x 410 (mm)

T Channels: 18-5 x 100 (mm)

Table loading capacity: 500 (kg)

X Axis Travel Quantity: 480 (mm)

Y Axis Travel Quantity: 435 (mm)

Z Axis Travel Quantity: 450 (mm)

Axis Guides X/Y/Z: Linear Roller Guide 35*2 / 45*2 / 35*4 (mm)

Axis Motor Powers X/Y/Z: 3(kW) / 3(kW) / 3(kW)*2

Spindle to table distance: 200-650 (mm)

Spindle taper: BT-40

Max. Spindle motor power: 11 (kW)

Max. Spindle speed: 12,000 (rpm)

Number of magazine stations: 2 x 24 pieces (Arm Type ATC)

Max. tool diameter: 75 (mm)

Max. tool length: 150 (mm)

Max. tool weight: 6 (kg)

Tool change time (T/T): 2.2 (sec)

Tool change time (C/C): 3.5 (sec)

Rapid feed X*Y*Z: 36*36*36 (m/min)

Cutting feed X*Y*Z: 20 (m/min)

Machine External Dimensions W*D*H: 2,900 * 3,300 * 3,100 (mm)

Approx. Machine weight: 4,200 (kg)
